Line Voltage Motors

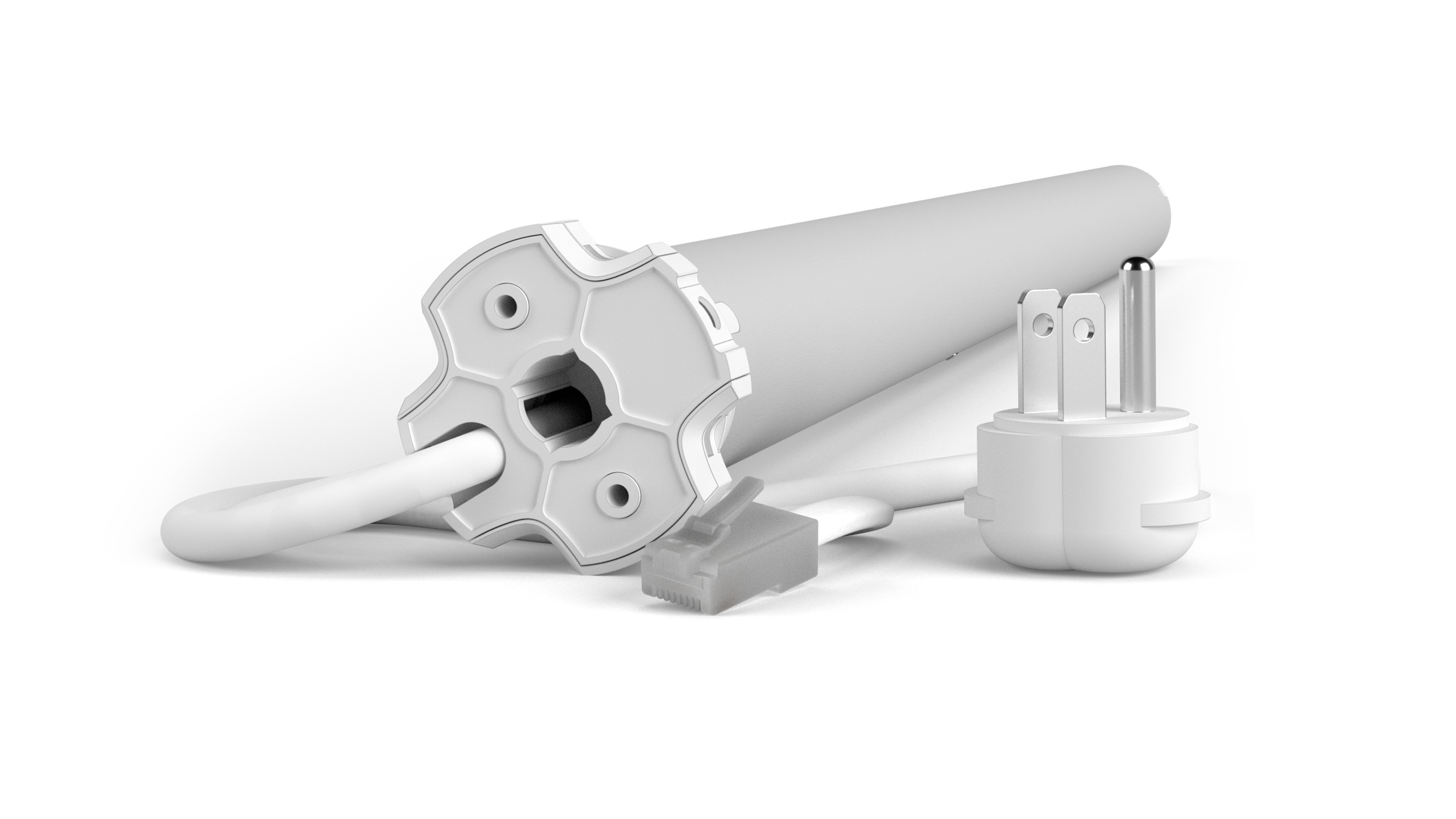

Automate AC Series
This series of motors can provide continuous power to your shades and are the ideal solution when establishing electrical wiring during a renovation or new build. Shades can be made up to a size of 120 x 120″ using the smallest motor, and up to 168″ x 168″ when using the largest motor. The Automate™ AC Series is directly compatible with roller systems but can also be adapted for roman shades and Venetian blinds.
Features
Bi-directional Communication
Automate Radio Communication utilizes two-way communication to provide up-to-date feedback on battery levels and shade positioning via the Automate Pulse 2 app.
Simplified Setup
Whether using a remote control or app for shade setup, Automate programming instructions are streamlined to have your shades moving as quickly as possible.
Favorite Positioning
Add a programmable shade position in addition to the upper and lower limits that can be defined as your favorite.
Precise Limit Adjustment
Incremental steps during limit setting allows for precise positioning of the shade.
Technical Specifications
Show Specifications Hide Specifications
| ACRF 6 | ACRF Q6 | ACRF Q10 | ACRF 15 | |
| Amps | .85A | .85A | 1A | 1.73A |
| Insulation Class | III | III | I | III |
| IP Rating | IP44 | IP44 | IP44 | IP44 |
| Limit Switch Type | Electronic | Electronic | Electronic | Electronic |
| Max Run Time | 4 Min | 4 Min | 4 min | 4 Min |
| Radio Frequency | 433.92 MHz | 433.92 MHz | 433.92 MHz | 433.92 MHz |
| RF Modulation | FSK | FSK | FSK | FSK |
| Sound Level | ~44DB | ~42DB | ~53DB | |
| Speed | 33 RPM | 24 RPM | 21 RPM | 32 RPM |
| Temp Working Range | 32°F to 140°F | 32°F to 140°F (0°C to 60°C) | 32°F to 140°F (0°C to 60°C) | 32°F to 140°F (0°C to 60°C) |
| Torque | 6.0Nm | 6.0Nm | 10 Nm | 15Nm |
| Voltage | 110 V | 110-240 Volts AC | 110-120 Volts AC | 110-120 Volts AC |
Controllers
Flush Mount Switch
View DetailsWall Switch
View DetailsParadigm Remote
View DetailsInternal Sun Sensor
View DetailsPush Remote
View DetailsPulse 2 App
View DetailsPulse 2 Hub
View DetailsAccessories
ARC Repeater
View DetailsARC Relay Module
View DetailsInternal Sun Sensor
View DetailsAC Grounding 3 Conductor Male Plug
View DetailsLine Voltage Motors

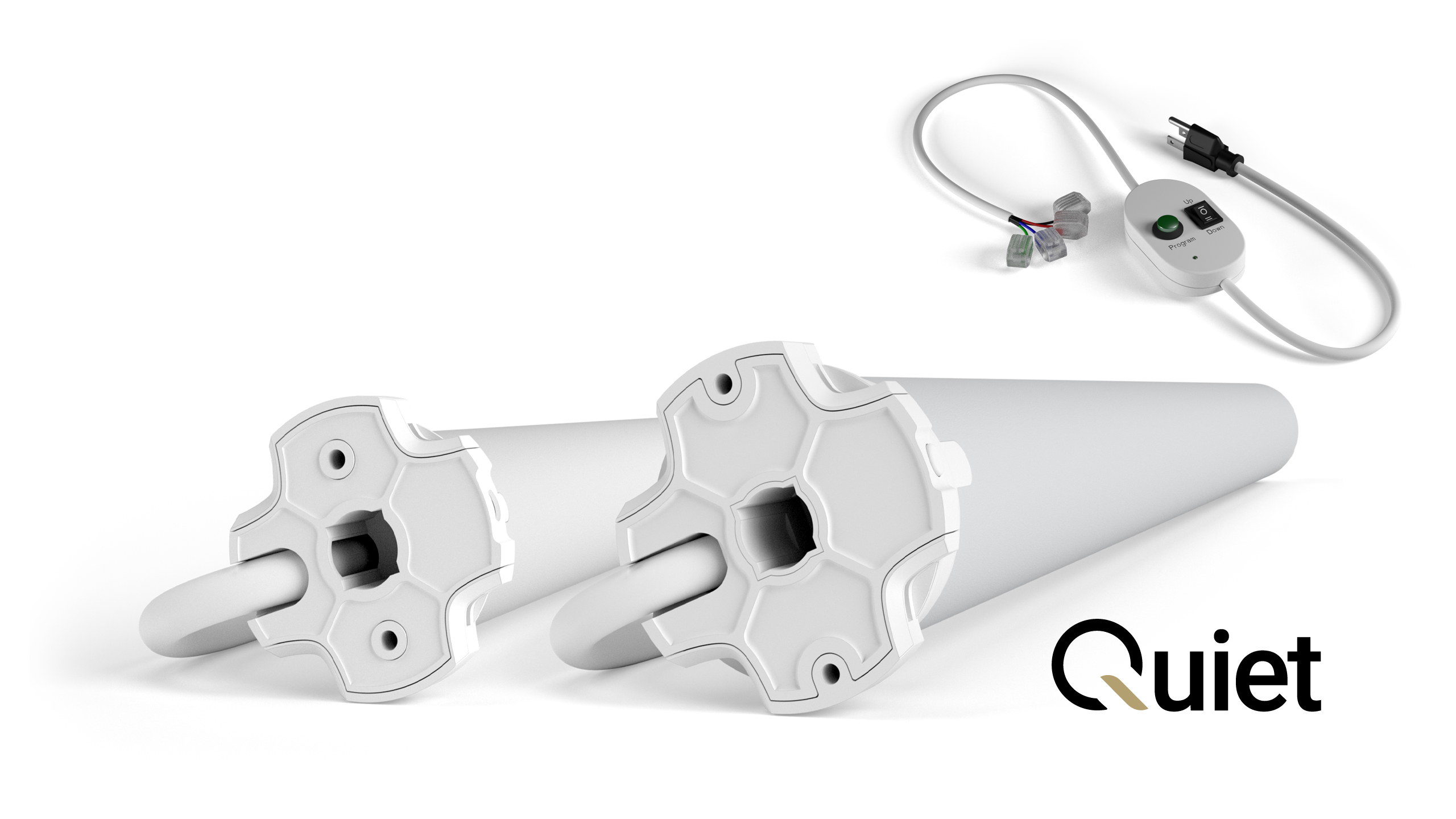

Automate ML Series
This series of mechanical limit motors can provide continuous power to your roller shades and are the ideal solution when establishing electrical wiring during a renovation or new build. Shades can be made up to a size of 120 x 120″ using the smallest motor, and up to 168″ x 168″ when using the largest motor.
Features
Simplified Setup
Automate programming instructions are streamlined to have your shades moving as quickly as possible.
Cost Effective
Economical solution in commercial environments where numerous motors are required. Reduce installation and maintenance costs.
Reliable Operation
No interference from other devices to prevent the motor from operating.
Technical Specifications
Show Specifications Hide Specifications
| ACML 6 | ACML Q6 | ACML Q10 | ACML Q20 | |
| Amps | .85A | .85A | 1.59A | 1.59A |
| Insulation Class | III | III | III | III |
| IP Rating | IP44 | IP44 | IP44 | IP44 |
| Limit Switch Type | Mechanical | Mechanical | Mechanical | Mechanical |
| Max Run Time | 4 Min | 4 Min | 4 Min | 4 Min |
| Sound Level | ~44DB | ~42 DB | ~42 DB | ~52 DB |
| Speed | 33 RPM | 24 RPM | 21 RPM | 32 RPM |
| Temp Working Range | 32°F to 140°F | 32°F to 140°F (0°C to 60°C) | 32°F to 140°F (0°C to 60°C) | 32°F to 140°F (0°C to 60°C) |
| Torque | 6.0Nm | 6.0Nm | 10.0Nm | 20.0Nm |
| Voltage | 110V AC | 110V AC | 110V AC | 110V AC |
Resources
Product Guides
Line Voltage
Automate AX Series
The Automate AX30 and AX50 are our most adaptive set of external motors yet. Designed to power a collection of outdoor shades, the AX range is built to smoothly operate open bracket and closed cassette configurations.
Featuring impact detection, precise limit adjustment and self-tightening technology, both motors ensure cassette awnings come to a perfectly sealed close, every time.
The AX30 and AX50 can be used with the Extreme roller systems, and our full range of folding-arm awning solutions.
Features
3-IN-1 Motor
Universal Compatibility with Extreme and Awning Systems.
Wind & Sun Sensor Compatibility
Ability to detect Wind and light from compatible sensors.
Multi-Functional
An optional cassette mode performing a self tightening fabric function for a perfectly sealed cassette or head box.
Precise Limit Adjustment
Incremental steps during limit setting allows for precise positioning of the shade.
Robust Metal Star Head
Ensuring a strong and secure attachment.
Simplified Setup
Whether using a remote control or app for shade setup, Automate programming instructions are streamlined to have your shades moving as quickly as possible.
Technical Specifications
Show Specifications Hide Specifications
| AX30 | AX50 | |
| Current | 1.60A | 2.40A |
| Insulation Class | H | H |
| IP Rating | IP44 | IP44 |
| Limit Switch Type | Electronic | Electronic |
| Max Run Time | 4min | 4min |
| Radio Frequency | 433.92 MHz | 433.92 MHz |
| RF Modulation | FSK | FSK |
| Speed | 13 RPM | 13 RPM |
| Temp Working Range | 32°F to 140°F (0°C to 60°C) | 32°F to 140°F (0°C to 60°C) |
| Torque | 30Nm | 50Nm |
| Voltage | 120V AC 60Hz | 120V AC 60Hz |
