push 5 remote control
Cutting edge, functional design.
The Automate Push series fuses luxury and functionality in a well-crafted, durable design. The Push5 and Push15 channel remotes are available in two premium finishes – gloss white and matte black, complementary to any decor.
Create favorite shade positions and shade group channels with a simple, tactile push button operation featuring LED indicator lights.
push remote
Modern design combined with simple, and functional control.
- Slim, luxurious and distinct design
- Tactile buttons
- Five & Fifteen Channel Options
- Favorite position setting
- Durable build
Technical Specifications
Show Specifications Hide Specifications
| 5 Channel | 15 Channel | |
| Battery Size/Type | 3V (CR2430) | 3V (CR2450) |
| IP Rating | 40 | 40 |
| Legacy Option | No | No |
| Lock Function | Yes | Yes |
| Operating Temperature | 14°F to 122°F (-10°C to 50°C) | 14°F to 122°F (-10°C to 50°C) |
| Radio Frequency | 433.92 MHz | 433.92 MHz |
| RF Modulation | FSK | FSK |
| Transmission Distance | 20 Meters typical (Up to 100 Meters unobstructed) | 20 Meters typical (Up to 100 Meters unobstructed) |
| Transmitting Power | 10 milliwatt | 10 milliwatt |
flush switch
Contemporary design ready for any location
The Automate collection of Wall Switches feature a contemporary design and a wire-free deployment, making them retrofit-ready for any location.
- Multi-channel selectable
- Retrofit ready
- Group Control
- Compatible with screw-less decorator cover plates
- Optionally functions as a handheld remote
- Customize to suit project requirements with custom-printed buttons
Technical Specifications
Show Specifications Hide Specifications
| Wall Switch | 5 Channel Decorator Wall RF Switch (Flush) | |
| Operating Temperature | 14 to 122 °F | 14 to 122 °F |
| Radio Frequency | 433 MHz | |
| Transmission Distance | 20 Meters typical (Up to 100 Meters unobstructed) | 20 Meters typical, Up to 100 Meters unobstructed |
| Transmitting Frequency | 433 MHz | |
| Transmitting Power | 10 mW | 10 mW |
| Voltage | 3V (AAA x 2) | 3V (CR2430 x1) |

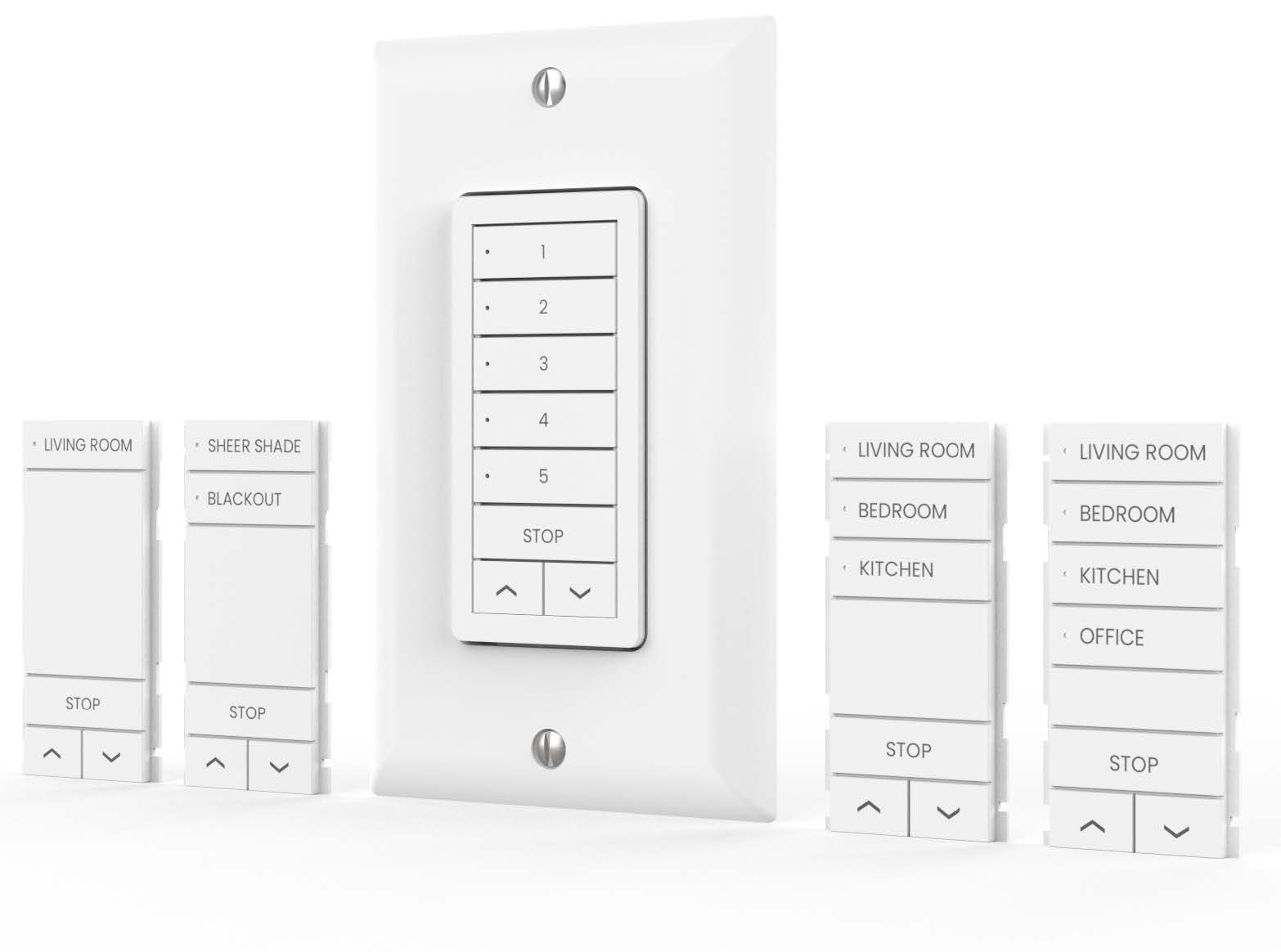

Button Frame Kit for Flush Switch
Customizable contemporary design
Personalize one to four channels to accommodate specific applications on the 5-Channel Flush Wall Mount Switch. The customizable faceplates for the 5-Channel Flush Wall Switch are perfect for internal motorized commercial shade applications. Upgrade the 5-Channel Flush Wall Switch with custom-printed buttons to suit specific project requirements. Please note that the 5-CH Push Remote is Sold Separately.
- Personalize a one-channel kit up to a four-channel kit
- Customize to suit project requirements with custom-printed buttons
- Order custom-printed labels specific to individual needs. An easy-to-use order form that can be filled out on the computer.
- Group shades onto one channel for convenient controls. Add an entire room or sections of the room that can be labeled for convenience.
To customize your button frame kit click here.

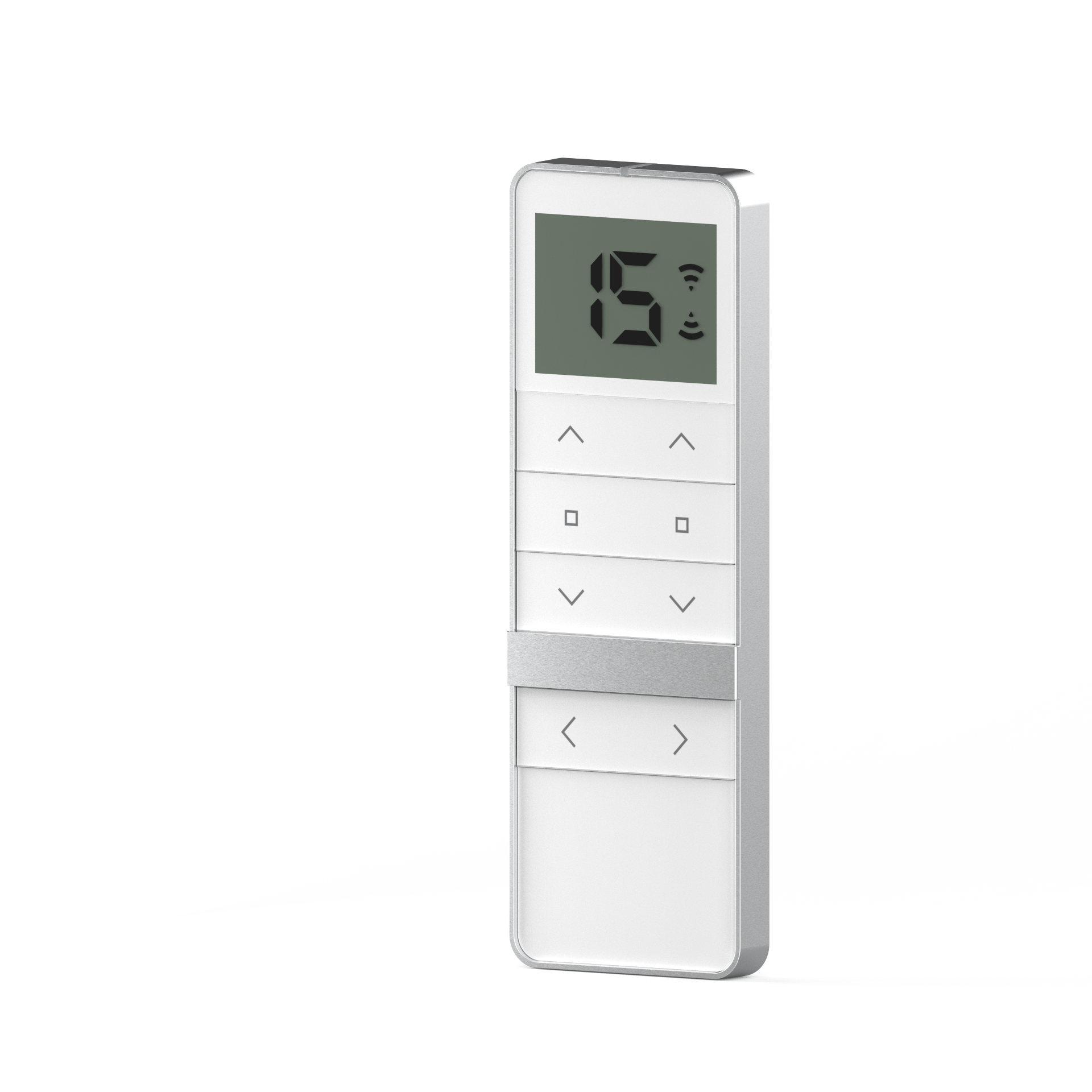

PARADIGM REMOTE CONTROLS
Automate Paradigm remotes feature a contemporary design with touch sensitive controls.
- Available in single and fifteen channel models
- Touch sensitive buttons
- Leveling control & LCD display (15 channel remote only)
- Hide unused channel function
- Optional slim magnetic wall mount
Technical Specifications
Show Specifications Hide Specifications
| Single & Fifteen Channel | |
| Device Control Frequency | 433.92 MHz |
| Operating Temperature | -10°C -50°C |
| Transmitting Power | 10 milliwatt |
| Typical Transmission Distance | 20 meters (65 feet) |
| Voltage | 3V (CR2450) |
