SOLAR PANEL v1

The original Automate Solar Panel provided power to our range of Wirefree Li-ion battery motors.

  • Plug ‘n’ play for all AUTOMATE Li-ion motors & rechargeable battery packs
  • Sleek design allows for unobtrusive placement behind most headrails
  • Parallel wiring options support large shades
Discontinued

Technical Specifications

Show Specifications Hide Specifications

Solar Panel V1
Max Average Current 190 ± 20 mA
Max Average Voltage Output 12.3 ± 0.1 V
Minimum Lux Value 10 ± 5 KLux
Power Output 2.3 ± 0.2 W

Resources

0848B05E-FBFD-4492-8F74-51556A0D12DF Created with sketchtool. Application Guide | Solar Panel V1
0848B05E-FBFD-4492-8F74-51556A0D12DF Created with sketchtool. Programming Instructions | Solar Panel

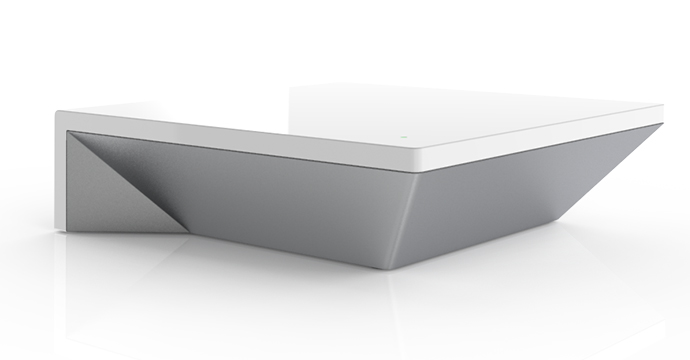

PULSE 1 HUB

The original Pulse 1 hub, offering smart phone control for motorized shades.

  • ARC compatible
  • Set up to 20 scenes and timers.
  • Control from anywhere right from your phone.
  • Step by step set up wizard
  • Compatible with Alexa voice assistant.
Pulse 1 image

Technical Specifications

Show Specifications Hide Specifications

Pulse v 1
Antenna Built-in
Current 500mA
Device Control Frequency 433MHz
Installation Desktop or wall-mounted
Power <2.5W
Power Input 5VDC/1A
Protection Class IP20
Radio Coverage 30m for device control (indoors)
Standby Power ≤300mA
Storage Temperature -20⁰ to 55⁰
Wi-Fi Network 802.11 b/g/n 2.4GHz
Working Temperature -10⁰ to 45⁰

Resources

0848B05E-FBFD-4492-8F74-51556A0D12DF Created with sketchtool. Set Up Guide | AMX Pulse 0848B05E-FBFD-4492-8F74-51556A0D12DF Created with sketchtool. Set Up Guide | Pulse 0848B05E-FBFD-4492-8F74-51556A0D12DF Created with sketchtool. Set Up Guide | Google Home Pulse 0848B05E-FBFD-4492-8F74-51556A0D12DF Created with sketchtool. Set Up Guide | Control4 Pulse 0848B05E-FBFD-4492-8F74-51556A0D12DF Created with sketchtool. Set Up Guide | Crestron Pulse 0848B05E-FBFD-4492-8F74-51556A0D12DF Created with sketchtool. Set Up Guide | Alexa Pulse 0848B05E-FBFD-4492-8F74-51556A0D12DF Created with sketchtool. Set Up Guide | IFTTT Pulse
0848B05E-FBFD-4492-8F74-51556A0D12DF Created with sketchtool. Set Up Guide | Savant Pulse 0848B05E-FBFD-4492-8F74-51556A0D12DF Created with sketchtool. Pulse 1 Quick Start Guide 0848B05E-FBFD-4492-8F74-51556A0D12DF Created with sketchtool. Crestron Command Processor 0848B05E-FBFD-4492-8F74-51556A0D12DF Created with sketchtool. Pulse 1 | Topology of Power Over Ethernet 0848B05E-FBFD-4492-8F74-51556A0D12DF Created with sketchtool. Pulse 1 | Serial Protocol 0848B05E-FBFD-4492-8F74-51556A0D12DF Created with sketchtool. Pulse 1 | RS485 Network Cabling Standard 0848B05E-FBFD-4492-8F74-51556A0D12DF Created with sketchtool. Pulse 1 | Installation Scenario 1 0848B05E-FBFD-4492-8F74-51556A0D12DF Created with sketchtool. Pulse 1 | Installation Scenario 2

Home Automate System Drivers

Set up Driver Download V1

Motor Driver Download V1

Serial String Compiler & Testing Tool

DC 0.2Nm Low Voltage Motor

Simplified wiring. Efficient installation. Maintenance free.

  • Bi-directional ARC communication
  • Simplified setup
  • Precise limit adjustment
  • Adjustable speed control
  • Favorite positioning
DC 0.2NM_ProductImage

0.2Nm

0.2 Nm
Amps 0.42A
Insulation Class III
IP Rating IP44
Limit Switch Type Electronic
Max Run Time 10 Min
Radio Frequency 433.92 MHz
RF Modulation FSK
Sound Level ~48DB
Speed 80 RPM (Adjustable to 60 or 40)
Temp Working Range 32°F to 140°F (0°C to 60°C)
Torque 0.2Nm
Voltage 12

Resources

0848B05E-FBFD-4492-8F74-51556A0D12DF Created with sketchtool. Regulatory Compliance | DCRF 0.2Nm
0848B05E-FBFD-4492-8F74-51556A0D12DF Created with sketchtool. Product Guide | DCRF 0.2Nm

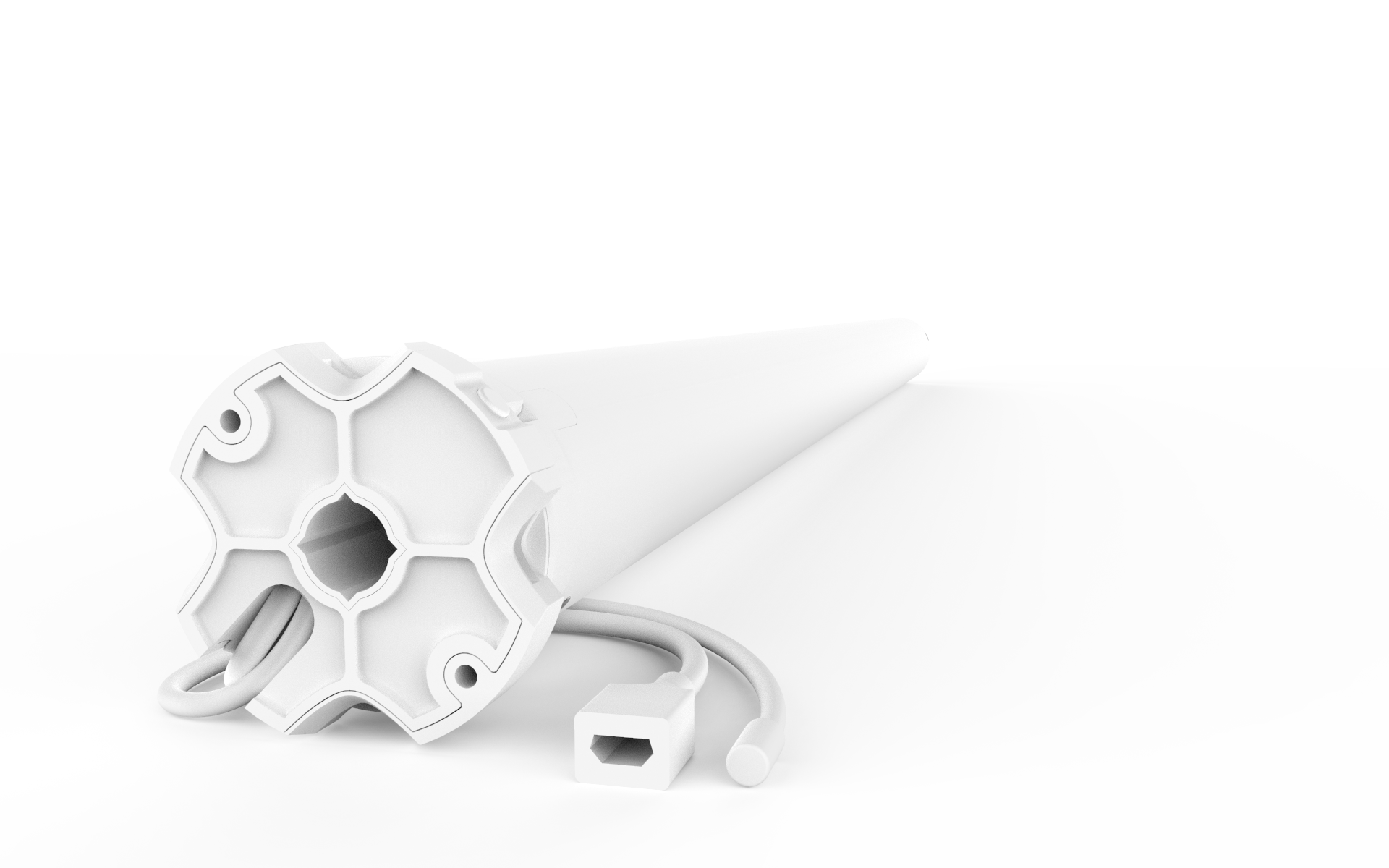

WIREFREE Li-ion 0.2Nm battery powered Motor

Featuring build in Lithium-ion re-chargable battery.

  • Leveling Control
  • Favorite position setting
  • Adjustable speed settings
  • Bi-directional ARC Communication
  • Optional Solar panel charger
Li-Ion 0.2NM_ProductImage

0.2Nm

Li-ion 0.2Nm
Amps 0.42A
Battery Size/Type 750mAH
Insulation Class III
IP Rating IP44
Limit Switch Type Electronic
Max Run Time 10 Min
Radio Frequency 433.92 MHz
RF Modulation FSK
Sound Level ~48
Speed 80 RPM (Adjustable to 60 or 40)
Temp Working Range 32°F to 140°F (0°C to 60°C)
Torque 0.2Nm
Voltage 12

Resources

0848B05E-FBFD-4492-8F74-51556A0D12DF Created with sketchtool. Product Guide | Li-ion 0.2Nm
0848B05E-FBFD-4492-8F74-51556A0D12DF Created with sketchtool. Regulatory Compliance | Li-ion 0.2Nm

battery powered motors

Automate Li-ion Switch Wand

  • Accessible Control | Misplaced remote controls are never an issue with motorized shade control at the source.
  • Add a programmable shade position in addition to the upper and lower limits that can be defined as your favorite.
  • Simplified Automate programming instructions are streamlined to have your shades moving as quickly as possible.
  • Incremental steps during limit setting allows for precise positioning of the shade.
  • Quickly access and conveniently charge the motor with any micro USB cable charger.
Li-ion SWitch Wand 1.1_MTDCBSW25-1.1
0848B05E-FBFD-4492-8F74-51556A0D12DF Created with sketchtool. Programming Instructions | Li-ion Switch Wand 1.1 Motor 0848B05E-FBFD-4492-8F74-51556A0D12DF Created with sketchtool. Product Guide | Li-ion Switch Wand 1.1
0848B05E-FBFD-4492-8F74-51556A0D12DF Created with sketchtool. Regulatory Compliance Document | Li-ion Switch Wand 1.1 Motor

Switch Motor Wand

Easy to use

  • No chain.
  • Programmable positions at the touch of a button.
  • Multiple product lengths (24″, 36″, and 48″) suit a variety of installation heights.
  • Available in Black or Grey.
Discontinued
