push Series remote control

Cutting edge, functional design.

Hand held & Wall switch Controllers

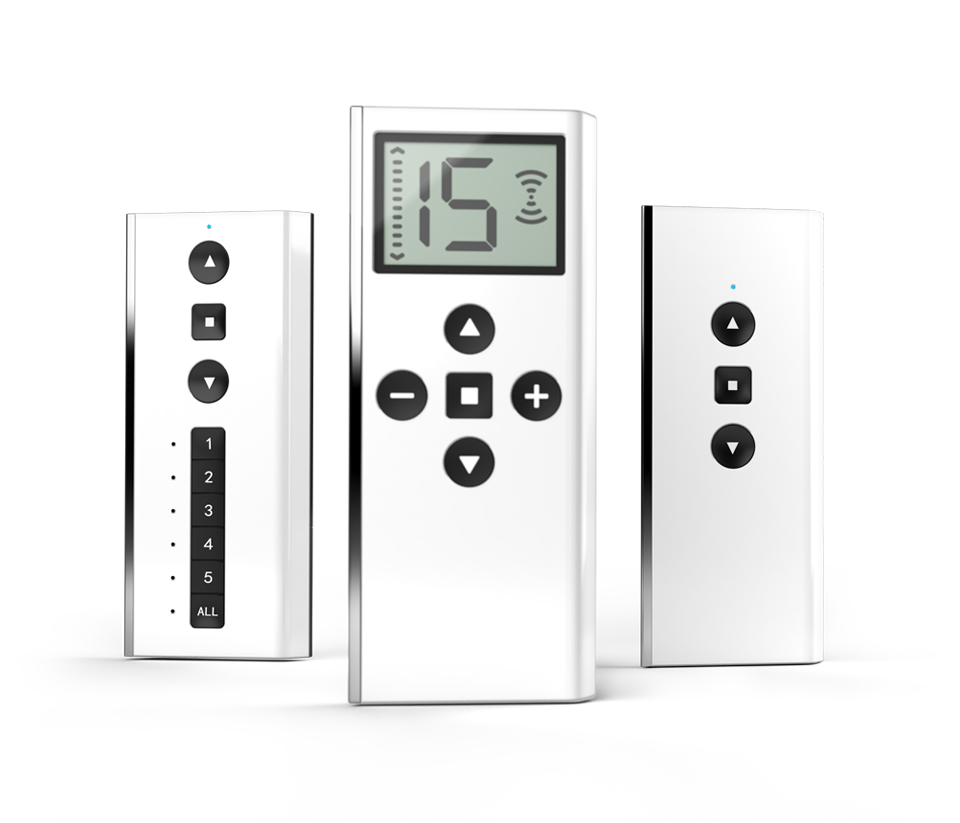

The Automate® Push series fuses luxury and functionality in a well-crafted, durable design. The 5 and 15 channel remote is available in two premium finishes – Gloss White and Matte Black to suit your existing interior decor.

Featuring tactile easy button control, lighting up at the press, while also offering favorite position and group channel options.

Hand held & Wall switch Controllers
Hand held & Wall switch Controllers
Hand Held Push Remotes
Hand Held Paradigm Remotes
Paradigm Wall Switches
Surface Mount Wall Switches
Hand held & Wall switch Controllers
Hand Held Push Remotes
Hand Held Paradigm Remotes
Paradigm Wall Switches
Surface Mount Wall Switches

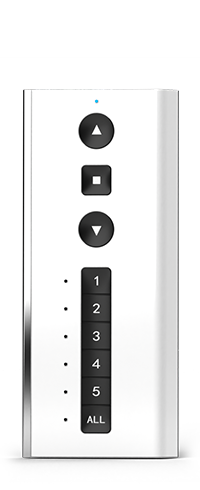

push remoteS

The cutting-edge design of our Push remote controls is modern, simple and functional.

  • Slim, luxurious and distinct design.
  • Tactile buttons
  • Five & Fifteen Channel Options
  • Favorite position setting
  • Durable build
Hand held & Wall switch Controllers

Technical Specifications

Hide Specifications Show Specifications

5 Channel 15 Channel
Battery Size/Type 3V (CR2430) 3V (CR2450)
IP Rating 40 40
Legacy Option No No
Lock Function Yes Yes
Operating Temperature 14°F to 122°F (-10°C to 50°C) 14°F to 122°F (-10°C to 50°C)
Radio Frequency 433.92 MHz 433.92 MHz
RF Modulation FSK FSK
Transmission Distance 20 Meters typical (Up to 100 Meters unobstructed) 20 Meters typical (Up to 100 Meters unobstructed)
Transmitting Power 10 milliwatt 10 milliwatt

Resources



0848B05E-FBFD-4492-8F74-51556A0D12DF Created with sketchtool. Programming Instructions | Push 5 Remote 0848B05E-FBFD-4492-8F74-51556A0D12DF Created with sketchtool. Product Guide | Push 5 Remote
0848B05E-FBFD-4492-8F74-51556A0D12DF Created with sketchtool. Product Guide | Push15 Remote 0848B05E-FBFD-4492-8F74-51556A0D12DF Created with sketchtool. Programming Instructions | Push15 Remote

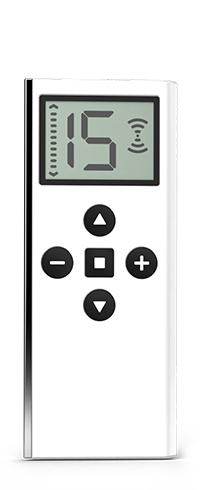

PARADIGM Plus REMOTE CONTROL

The Paradigm Plus remote features a contemporary design with tactile push button controls.

  • Available in fifteen channels
  • Push button controls
  • Leveling control & LCD display
  • Hide unused channel function
  • Optional slim magnetic wall mount
Paradigm Plus_Remote

Technical Specifications

Show Specifications Hide Specifications

Fifteen Channel
Device Control Frequency 433.92 MHz
Operating Temperature -10°C -50°C
Transmission Distance 20 Meters typical (Up to 100 Meters unobstructed)
Transmitting Power 10 milliwatt
Voltage 3V (CR2450)

Resources

0848B05E-FBFD-4492-8F74-51556A0D12DF Created with sketchtool. Regulatory Compliance Document | Paradigm Remote 0848B05E-FBFD-4492-8F74-51556A0D12DF Created with sketchtool. Product Guide | Paradigm Plus Remote
0848B05E-FBFD-4492-8F74-51556A0D12DF Created with sketchtool. Programming Instructions | Paradigm Remote 0848B05E-FBFD-4492-8F74-51556A0D12DF Created with sketchtool. ARC Programming Guide | Paradigm Plus

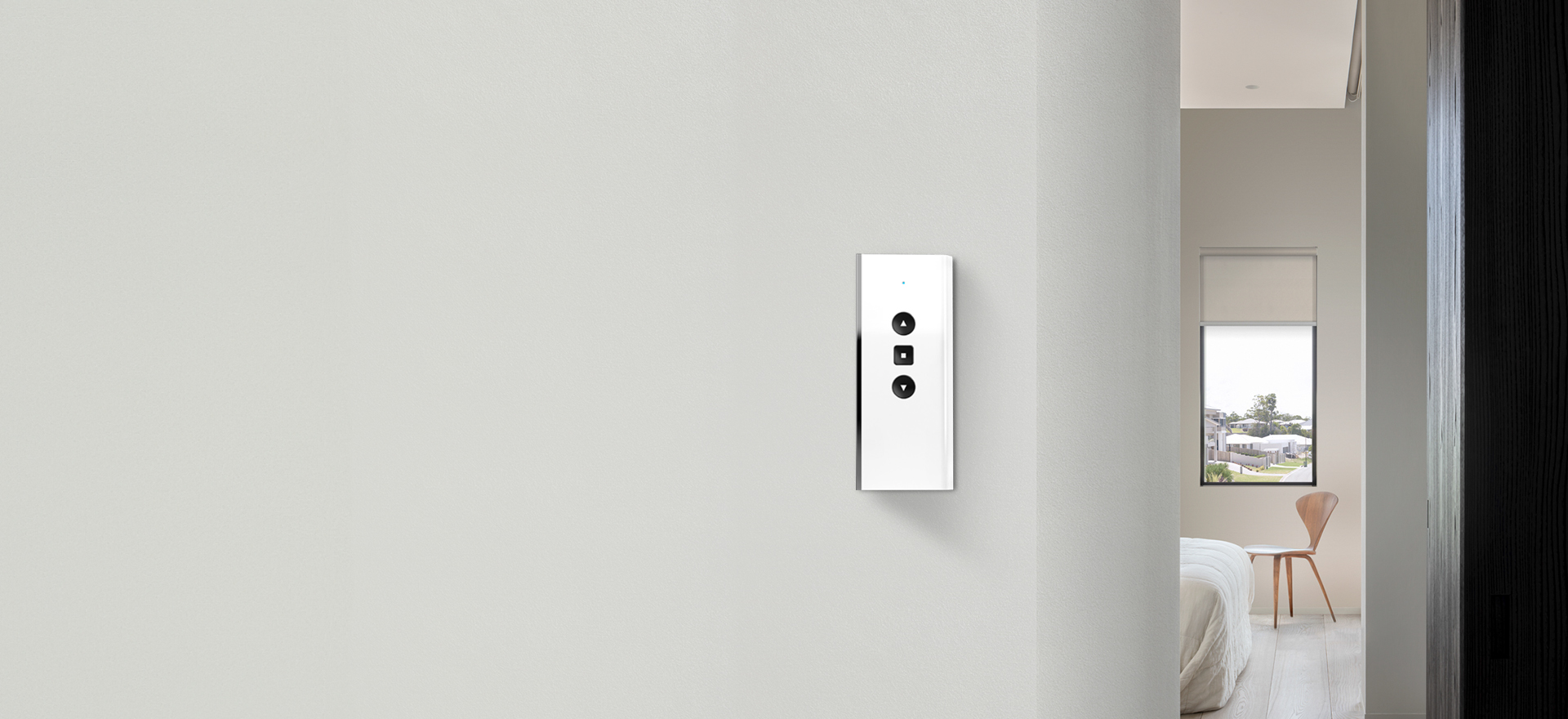

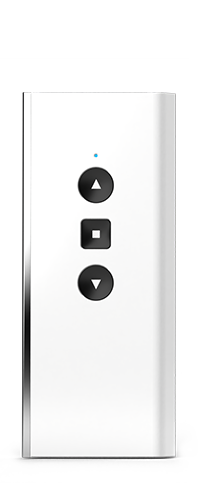

Wall Mounted Switches

Contemporary design and wirefree, retrofit ready for any location.

  • Available in single, two and fifteen channel
  • LCD display (on 15 channel only)
  • Hide unused channel functions.
  • Group multiple shades onto one channel.
WallChannelRemotes (1,2 & 15ch remotes) High Res

Technical Specifications

Show Specifications Hide Specifications

Wall Switch
Operating Temperature 14 to 122 °F
Radio Frequency 433 MHz
Transmission Distance 20 Meters typical (Up to 100 Meters unobstructed)
Transmitting Power 10 mW
Voltage 3V (AAA x 2)

Resources

0848B05E-FBFD-4492-8F74-51556A0D12DF Created with sketchtool. Product Guide | Wall Switches
0848B05E-FBFD-4492-8F74-51556A0D12DF Created with sketchtool. Programming Instructions | Wall Switches

wall switches

Contemporary design and wirefree, retrofit ready for any location.

The Automate range of controllers offers the Surface Mount Wall Switch – 5Ch, an easy mount wall switch that screws directly to the surface of the wall, allowing simple installation.

  • Available in five channels.
  • Magnetic backing plate.
  • Fixed backing plate.
  • Simple wall attachment.
surface mount wall switch 5 channels - automate motorised shades - news

Technical Specifications

Show Specifications Hide Specifications

Surface Mount Wall Switch
IP Rating 4X
Legacy Option NO
Operating Temperature -10°C to 50°C
Radio Frequency 433.92 MHz
RF Modulation FSK
Transmission Distance 20 Meters typical (Up to 100 Meters unobstructed)
Transmitting Power 10 milliwatt
Voltage 3V (CR2430)
0848B05E-FBFD-4492-8F74-51556A0D12DF Created with sketchtool. Product Guide | Surface Mount Wall Switch – 5Ch
0848B05E-FBFD-4492-8F74-51556A0D12DF Created with sketchtool. Programming Instructions | Surface Mount Wall Switch – 5Ch
