Low Voltage Motors

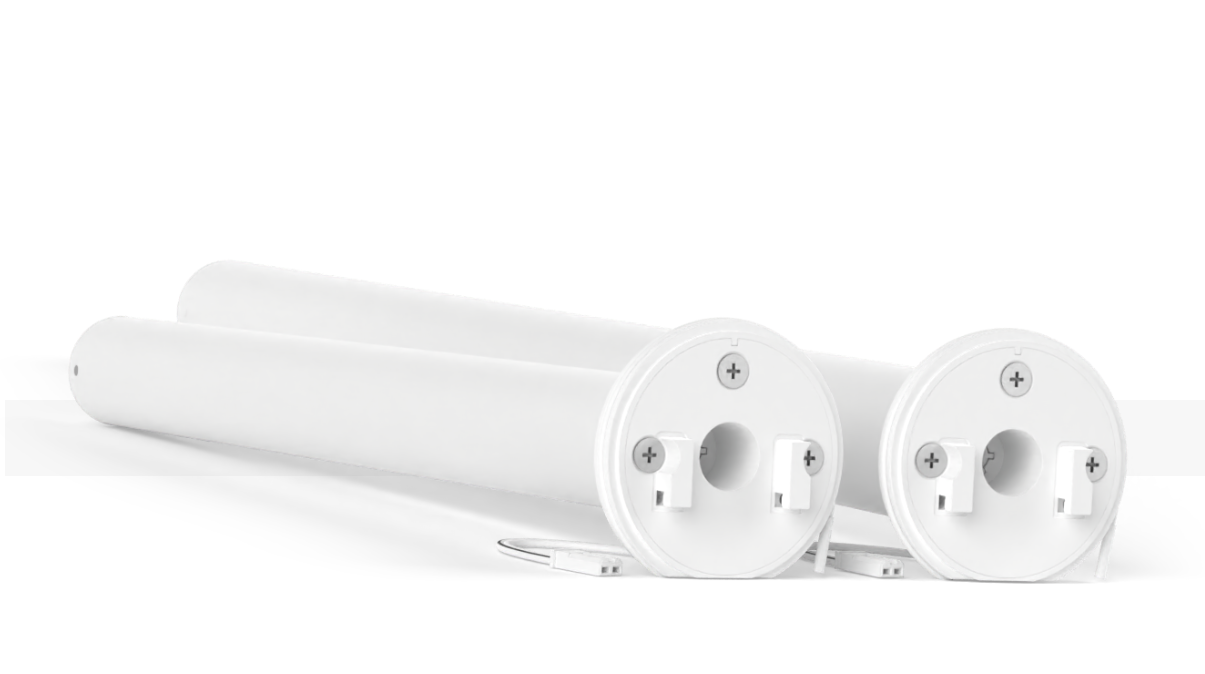

Automate DC Series

This series of continuously powered motors has been designed with a simplified wiring structure, enabling efficient installation of roller shading systems by qualified installers. Shades can be made up to a size of 13 x 12″ using the smallest motor, and up to 168″ x 168″ when using the largest motor. The Automateâ„¢ DC Series can be incorporated into roman shades, with the 3.0Nm motor specifically adaptable for Venetian blinds.

MOTOR RANGE_DCMotors

Technical Specifications

Show Specifications Hide Specifications

DCRF 1.1 DCRF Q2 DCRF 3 DCRF Q3 DCRF Q10
Amps 0.83A 1.25A 1.67 A 1.67A 1.75A
Insulation Class III III III III III
IP Rating IP44 IP44 IP44 IP44 IPAA
Limit Switch Type Electronic Electronic Electronic Electronic Electronic
Max Run Time 10 Min 10 Min 10 Min 10 Min 10 Min
Radio Frequency 433.92 MHz 433.92 MHz 433.92 MHz 433.92 MHz 433.92 MHz
RF Modulation FSK FSK FSK FSK FSK
Sound Level ~46DB ~44DB ~53DB ~40DB ~42DB
Speed 40 RPM (Adjustable to 30 or 20) 28 RPM (Adjustable to 24 or 20) 28 RPM (Adjustable to 24 or 20) 28 RPM (Adjustable to 24 or 20) 9 RPM (Adjustable to 8 OR 6)
Temp Working Range 32°F to 140°F (0°C to 60°C) 32°F to 160°F (0°C to 60°C) 32°F to 140°F (0°C to 60°C) 32°F to 140°F (0°C to 60°C) 32°F to 140°F (0°C to 60°C)
Torque 1.1Nm 2.0Nm 3.0Nm 3.0Nm 10.0Nm
Voltage 12 V 12 V 12 V 12 V 12 V

Features

Low Voltage

Bidirectional Communication

Automate Radio Communication utilizes two-way communication to provide up-to-date feedback on battery levels and shade positioning via the Automate Pulse 2 app.

Low Voltage

Adjustable Speed Control

Three shade speed settings to suit your needs faster for larger shades, slower for smaller. Features quiet operation when set to the lowest speed setting.

Low Voltage

Simplified Setup

Whether using a remote control or app for shade setup, Automate programming instructions are streamlined to have your shades moving as quickly as possible.

Low Voltage

Favorite Positioning

Add a programmable shade position in addition to the upper and lower limits that can be defined as your favorite.

Low Voltage

Precise Limit Adjustment

Incremental steps during limit setting allows for precise positioning of the shade.

Controllers

Flush Mount Switch

View Details

Wall Switch

View Details

Paradigm Remote

View Details

Internal Sun Sensor

View Details

Push Remote

View Details

Pulse 2 App

View Details

Pulse 2 Hub

View Details

Accessories

DC Power Distribution Panel

View Details

Rechargeable Battery Pack 12V

View Details

ARC Repeater

View Details

DC Motor Power Supply

View Details

ARC Relay Module

View Details

Power Supply for DCRF Motors 18/25mm (No Battery)

View Details

Power Supply for DCRF Motors 28/35/45mm (No Battery)

View Details

Battery Tube for DCRF Motors 18/25mm (No Battery)

View Details

DC Motor Cable Extenders

View Details

Low Voltage Motors

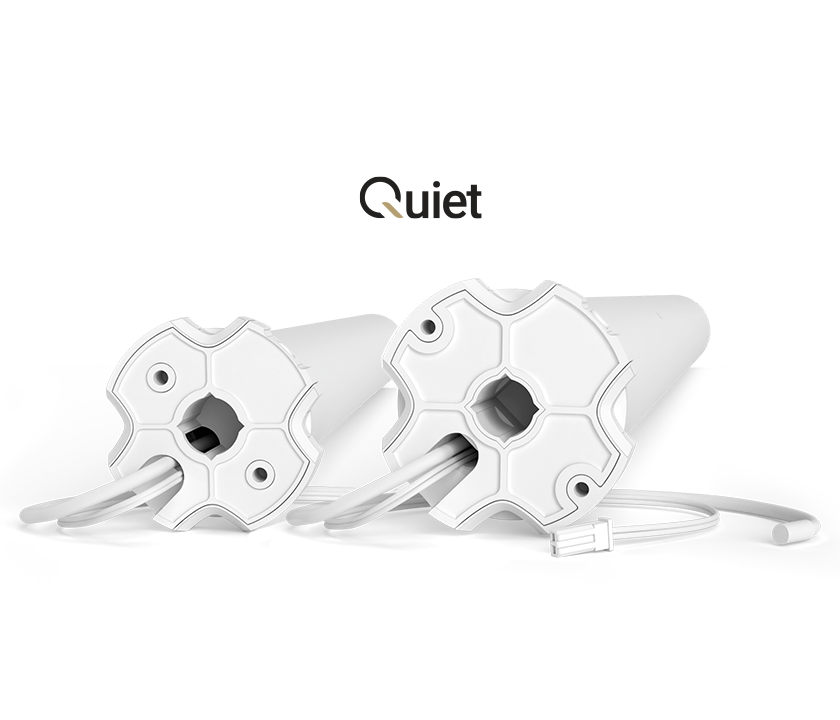

Automate DC Zero Series

The low voltage DC Zero boasts extra quiet technology and can achieve the narrowest shade widths. You can choose from three different power charging solutions to keep your motors running continuously. Our charging accessories include a powering cable, external battery pack, or a DC distribution box that can charge up to 18 motors.

automate motorised shades - DC Zero shade motors

Technical Specification

Show Specifications Hide Specifications

12V DC Zero EQ1.1 12V DC Zero EQ2.0
Amps 10 W 13W
Insulation Class III III
IP Rating IP20 IP44
Limit Switch Type Electronic Electronic
Max Run Time 6 min. 10 min.
Radio Frequency 433.92 MHz 433.92 MHz
RF Modulation FSK FSK
Sound Level ~36 dB ~31 dB
Speed 20 RPM (Adjustable to 24 or 28) 20 RPM (Adjustable to 24 or 20)
Temp Working Range 32°F to 140°F (0°C to 60°C) 32°F to 140°F (0°C to 60°C
Torque 1.1Nm 2Nm
Voltage 12V-DC 12V DC

Features



Continuous power
Continuous Power

Choose from three power solutions; a powering cable, an external battery pack, or a DC distribution box that can power up to 18 motors.

Innovative motor cap
Innovative Motor Cap

Optional, custom-designed accessory for no visible wires.

Elegant soft stop
Elegant Soft Stop

Slows the motor down for a smooth stop to prevent damage to the shade, and preserves the life of the battery.

Low Voltage
Simplified Retrofit

Upgrade manual or motorized shade systems seamlessly to maintain existing deductions, achieve minimal light gap, and eliminate bracket adjustments.
