DC Motor
Automate FT Series
This motor provides continuous power to outdoor shades and is an ideal solution when establishing electrical wiring during a renovation or new build. Automate FT15 is directly compatible with Zipscreen Outdoor Shades and Ultra-lock for one action lock and tension.
Features
%22%20fill=%22none%22%20opacity=%220.9%22%3E%3C/rect%3E%3C/clipPath%3E%3C/defs%3E%3Cg%20id=%22Group_3745%22%20data-name=%22Group%203745%22%20transform=%22translate(-568%20-840)%22%3E%3Ccircle%20id=%22Ellipse_23%22%20data-name=%22Ellipse%2023%22%20cx=%2239.5%22%20cy=%2239.5%22%20r=%2239.5%22%20transform=%22translate(568%20840)%22%20fill=%22%23e6e7e8%22%3E%3C/circle%3E%3Cg%20id=%22Group_2800%22%20data-name=%22Group%202800%22%20transform=%22translate(574.284%20847.756)%22%20opacity=%220.9%22%3E%3Cg%20id=%22Group_2799%22%20data-name=%22Group%202799%22%20transform=%22translate(-0.252%200.276)%22%20clip-path=%22url(%23clip-path)%22%3E%3Cpath%20id=%22Path_26%22%20data-name=%22Path%2026%22%20d=%22M26.33,5.424,15.856,31.9h9.885l-7.3,26.244L38.529,26.293H27.467L37.823,5.424Z%22%20transform=%22translate(6.35%202.121)%22%20fill=%22%23a78d5c%22%3E%3C/path%3E%3Cpath%20id=%22Path_35%22%20data-name=%22Path%2035%22%20d=%22M0,0H3.356V56.04H0Z%22%20transform=%22translate(11.784%2015.279)%20rotate(-45)%22%20fill=%22%231a1818%22%3E%3C/path%3E%3C/g%3E%3C/g%3E%3C/g%3E%3C/svg%3E%20 "no electrician icon")
No Electrician
Plug-and-play, the battery pack is externally mounted, simply connect to the motor and start using the shade.
%22%20fill=%22none%22%3E%3C/rect%3E%3C/clipPath%3E%3C/defs%3E%3Cg%20id=%22Group_3746%22%20data-name=%22Group%203746%22%20transform=%22translate(-1071%20-839)%22%3E%3Ccircle%20id=%22Ellipse_24%22%20data-name=%22Ellipse%2024%22%20cx=%2239.5%22%20cy=%2239.5%22%20r=%2239.5%22%20transform=%22translate(1073%20840)%22%20fill=%22%23e6e7e8%22%3E%3C/circle%3E%3Cg%20id=%22Group_2802%22%20data-name=%22Group%202802%22%20transform=%22translate(1071.632%20838.458)%22%20opacity=%220.9%22%3E%3Cg%20id=%22Group_2801%22%20data-name=%22Group%202801%22%20transform=%22translate(-0.632%200.421)%22%20clip-path=%22url(%23clip-path)%22%3E%3Cpath%20id=%22Path_29%22%20data-name=%22Path%2029%22%20d=%22M8.974,35.192a1.2,1.2,0,0,1-1.2-1.2V27.746a1.2,1.2,0,1,1,2.393,0V34a1.2,1.2,0,0,1-1.2,1.2%22%20transform=%22translate(4.491%2017.983)%22%20fill=%22%23a78d5c%22%3E%3C/path%3E%3Cpath%20id=%22Path_30%22%20data-name=%22Path%2030%22%20d=%22M11.863,35.192a1.2,1.2,0,0,1-1.2-1.2V27.746a1.2,1.2,0,1,1,2.393,0V34a1.2,1.2,0,0,1-1.2,1.2%22%20transform=%22translate(6.478%2017.983)%22%20fill=%22%23a78d5c%22%3E%3C/path%3E%3Cpath%20id=%22Path_28%22%20data-name=%22Path%2028%22%20d=%22M17.883,32.557H7.756A1.943,1.943,0,0,1,5.819,30.62V24.948a1.943,1.943,0,0,1,1.937-1.939H17.883a1.944,1.944,0,0,1,1.937,1.939V30.62a1.944,1.944,0,0,1-1.937,1.937%22%20transform=%22translate(3.144%2015.549)%22%20fill=%22%231a1818%22%3E%3C/path%3E%3Cpath%20id=%22Path_31%22%20data-name=%22Path%2031%22%20d=%22M35.96,61.875A26.943,26.943,0,0,1,21.21,57.486a1.2,1.2,0,1,1,1.3-2A24.669,24.669,0,1,0,11.282,34.8c0,.574.04,1.134.083,1.7l-1.183.211L8.989,36.8c-.056-.746-.1-1.364-.1-1.995A27.071,27.071,0,1,1,35.96,61.875%22%20transform=%22translate(5.255%205.046)%22%20fill=%22%231a1818%22%3E%3C/path%3E%3Cpath%20id=%22Path_32%22%20data-name=%22Path%2032%22%20d=%22M18.584,24.867h0a1.532,1.532,0,0,1,0-2.159l4.358-4.357A1.526,1.526,0,0,1,25.1,20.509l-4.357,4.358a1.532,1.532,0,0,1-2.159,0%22%20transform=%22translate(14.219%2014.737)%22%20fill=%22%23a78d5c%22%3E%3C/path%3E%3Cpath%20id=%22Path_33%22%20data-name=%22Path%2033%22%20d=%22M33.081,24.867h0a1.532,1.532,0,0,1-2.159,0l-4.357-4.358a1.526,1.526,0,0,1,2.157-2.157l4.358,4.357a1.532,1.532,0,0,1,0,2.159%22%20transform=%22translate(16.661%2014.737)%22%20fill=%22%23a78d5c%22%3E%3C/path%3E%3Cpath%20id=%22Path_34%22%20data-name=%22Path%2034%22%20d=%22M25.31,34.2h0a1.531,1.531,0,0,1-1.527-1.527V26.514a1.527,1.527,0,0,1,3.053,0v6.163A1.531,1.531,0,0,1,25.31,34.2%22%20transform=%22translate(16.28%2016.905)%22%20fill=%22%23a78d5c%22%3E%3C/path%3E%3C/g%3E%3C/g%3E%3C/g%3E%3C/svg%3E%20 "easy charging icon")
Easy Charging
Charging made easy, with portable, hot-swap or in-place charging options available.
Simplified Set-Up
Whether using a remote control or app for shade set-up, Automate programming instructions are streamlined to have your shades moving as quickly as possible.
Precise Limit Adjustment
Incremental steps during limit setting allows for precise positioning of the shade.
Impact Detection
If an object happens to be under the shade, this motor will detect the obstacle and revert the shade to the open position in order to protect the shade.
Favourite Positioning
Add a programmable shade position in addition to the upper and lower limits that can be defined as your favourite.
Technical Specifications
Show Specifications Hide Specifications
| DC FT15 | |
| Code | MT01-1245-069001 |
| Current | 4.1 A |
| Insulation Class | A |
| IP Rating | IP44 |
| Limit Switch Type | Electronic |
| Power | 50 W |
| Radio Frequency | 433.92 MHz |
| RF Modulation | FSK |
| Speed | 10 RPM |
| Temp Working Range | 50°F to 131°F (-10°C to 55°C) |
| Torque | 15 Nm |
| Voltage | 12V-DC |
Controllers
PushONE Remote
View DetailsPush5 Remote
View DetailsPush15
View DetailsParadigm Wall Switch
View DetailsSurface Mount Wall Switch
View DetailsAutomate Shades App
View DetailsPulse 2 Hub
View DetailsAccessories
Solar Powered Wind & Sun Sensor
View DetailsARC Repeater
View DetailsARC Relay Module
View DetailsCompliance Documents
Battery Powered
Automate FT Series
Featuring a fully integrated internal battery, the new Li-Ion FT Motor delivers a clean, built-in aesthetic for motorised Zipscreen Outdoor Rollers. Its advanced brushless motor technology ensures quieter operation, longer run times, and lasting durability. Built-in Fabric Tensioning and Impact Detection technology provides lasting protection for your investment.
Features
Effortless Installation
Designed for simple, cost-effective installation – no electrician needed. Perfect for locations without direct power access.
Convenient Charging
Easily recharge using our Outdoor Solar Panel or a USB-C Port Extension mounted in a convenient location..
Favourite Positioning
Add a programmable shade position in addition to the upper and lower limits that can be defined as your favourite.
Soft Stop
The smooth action slows the motor down upon shade closure, quietly coming to an elegant stop.
Impact Detection
If an object happens to be under the shade, this motor will detect the obstacle and revert the shade to the open position in order to protect the shade.
Fabric Tensioning
Keeps fabric taut for a clean and smooth shade aesthetic.
Dual Charging Options
Convenient Charging Access

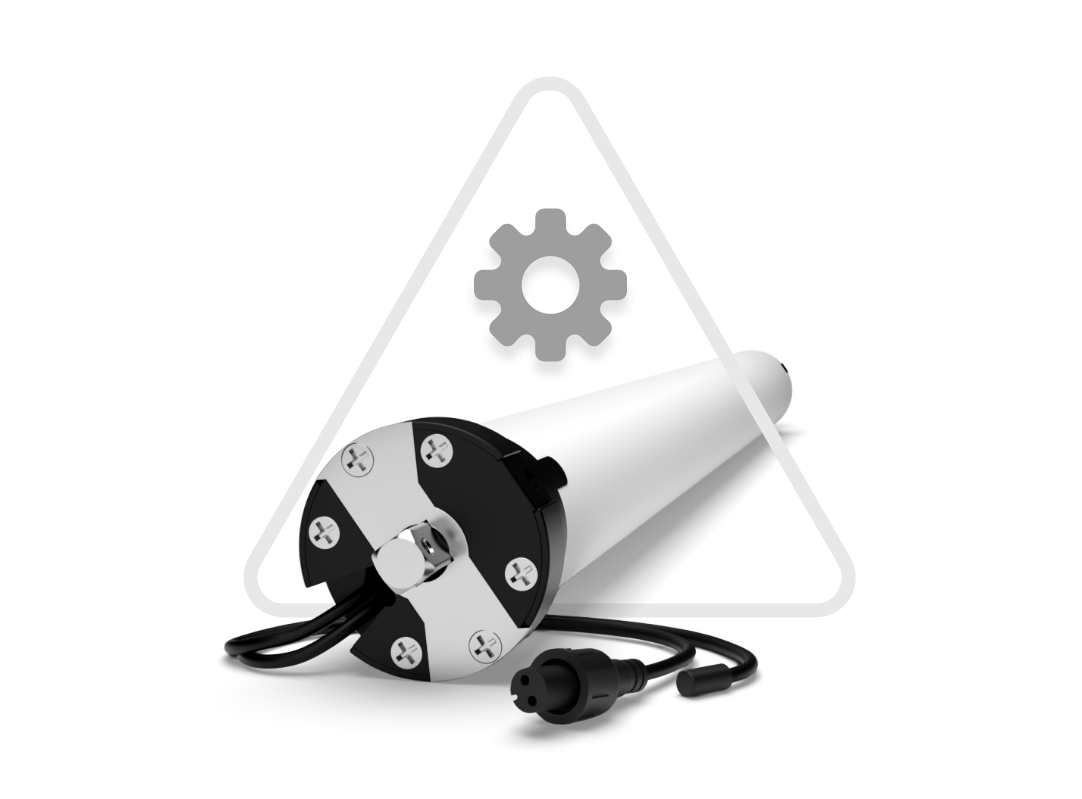

BRUSHLESS MOTOR TECHNOLOGY
Durability Meets Efficiency
The Li-ion FT motor features Brushless Motor Technology, offering smoother, quieter performance and longer run times.
By removing the brushes, there’s less friction and heat, so more energy goes into generating torque.
With fewer wearable parts, brushless motors are built to last, making them a durable motor solution for outdoor shades.
Accessories
Outdoor Solar Panel
View DetailsUSB-C Port Extension for Li-ion FT Motor
View DetailsTechnical Specifications
Show Specifications Hide Specifications
| Li-ion FT Motor | |
| Current | 5.5 A |
| Input Voltage Battery Module | 5200 mAh |
| Insulation Class | III |
| IP Rating | IP44 |
| Limit Switch Type | Electronic |
| Max Run Time | 12 minutes |
| Power | 66 W |
| Radio Frequency | 433.92 MHz |
| RF Modulation | FSK |
| Sound Level | ~55 dB |
| Speed | 15 rpm |
| Temp Working Range | 32°F to 113°F (0°C to 45°C) |
| Torque | 15 Nm |
| Voltage | 5 V |
