Products Outdoor Shades

Convenient Operation

Smart shades that reduce your effort

Outdoor Shades

Automate® motors offer a reduction in time and effort normally required for the operation of outdoor shades. Using a crank gear to open and close your outdoor shades is a traditional control that requires significant physical effort, whereas motorising your outdoor shades can remove the effort and give you back the valuable time to enjoy your outdoor space.

Unique to Automate, the FT Series of motors combined with the Automate Push remote series and Rollease Acmeda’s locking devices enable you to create a smart and sophisticated Zipscreen outdoor shading system. Simply activate the sequence with your Push remote to close and lock the shade while tensioning the fabric.

Outdoor Shades

Outdoor Motor Range - Comparison Chart

Show Hide

Motor Type Li-ion FT AC FT DC FT
Warranty 5 Years 7 Years 5 Years
Electrician Required? No Yes Yes
Application Convenient charging via side channel or Solar Panel. Connected to constant power supply. No charging required. Removable, rechargeable battery packs: charge attached to the shade or hot-swap.
Torque 15 Nm 15 Nm 15 Nm
Speed 15 Rpm 15 Rpm 10 Rpm
Power Internal Battery 240V External Battery
Fabric Tensioning ✔ ✔ ✔
Impact Detection ✔ ✔ ✔
Soft Stop ✔ - -
Compatible with Wind & Sun Sensor ✔ ✔ ✔
Compatible with Outdoor Solar Panel ✔ - -
Outdoor Shades
AC 240V
DC
Battery Powered
Outdoor Shades
AC 240V
DC
Battery Powered

ac 240v Motors

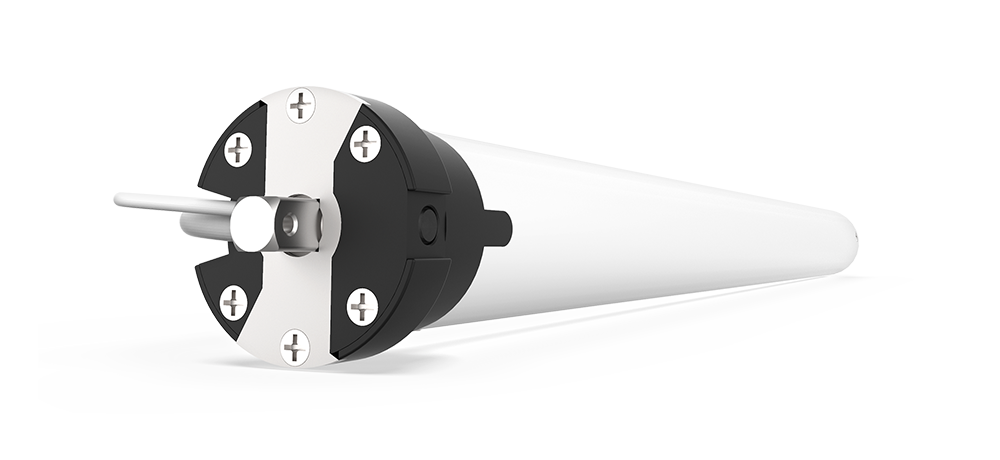

Outdoor AC Motor

  • Connected to power, no need to recharge
  • Three modes: E for standard use, Manual FT for use with conventional locking devices and Auto FT for use with Rollease Acmeda’s Ultra-Lock, providing automatic fabric tensioning.
  • Features impact detection technology. Senses an object in shades path and reverts to a safe position.

Find Out More



AC FT MT01-1145-050001 - Outdoor shades - Automate motorized shades

DC MOtors

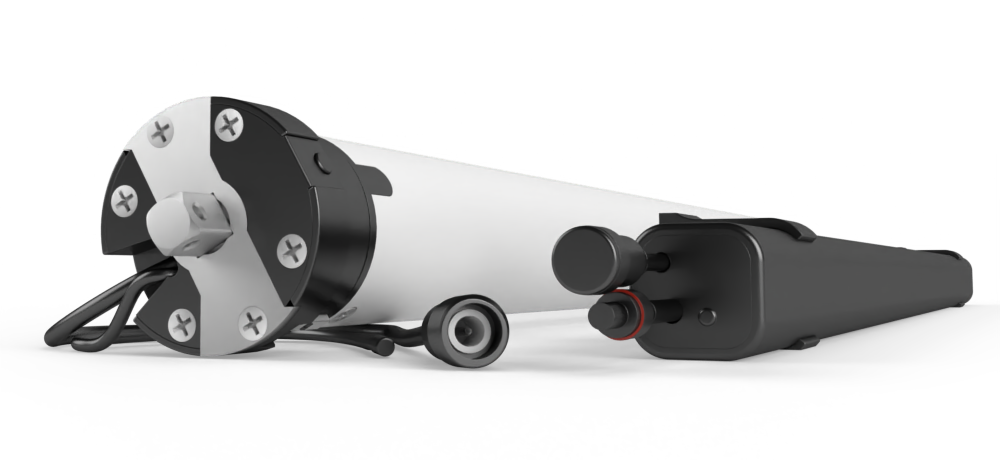

Outdoor DC Motor
with Removable Battery Pack

  • Experience the convenience of motorised shades in places where traditional power sources are unavailable.
  • Features our popular FT15 Motor functionalities, including impact detection and fabric tensioning.
  • Charging made easy, with portable, hot-swap or in-place charging options available.

Find Out More



Outdoor motorised shades - External Battery Motor and Battery Pack

Battery Powered

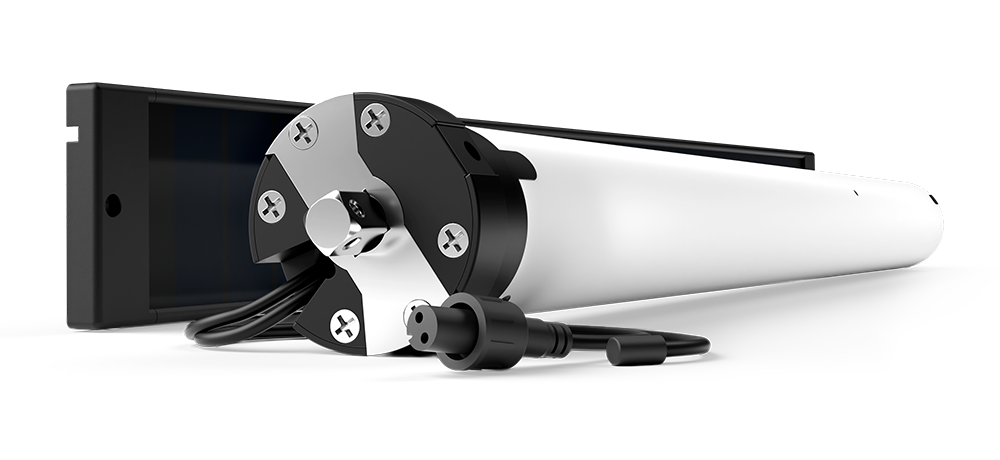

Outdoor Battery Motor

  • Sleek, integrated design that blends seamlessly into outdoor settings.
  • No electrician required for installation, making setup quick and hassle-free.
  • Charges discreetly via a USB-C port located on the side channel.
  • Optional solar panel provides an energy-efficient charging alternative.

Find Out More



Li-ion FT Motor MT01-1345-069005 - Outdoor shades - Automate motorized shades
