Battery Powered Motors

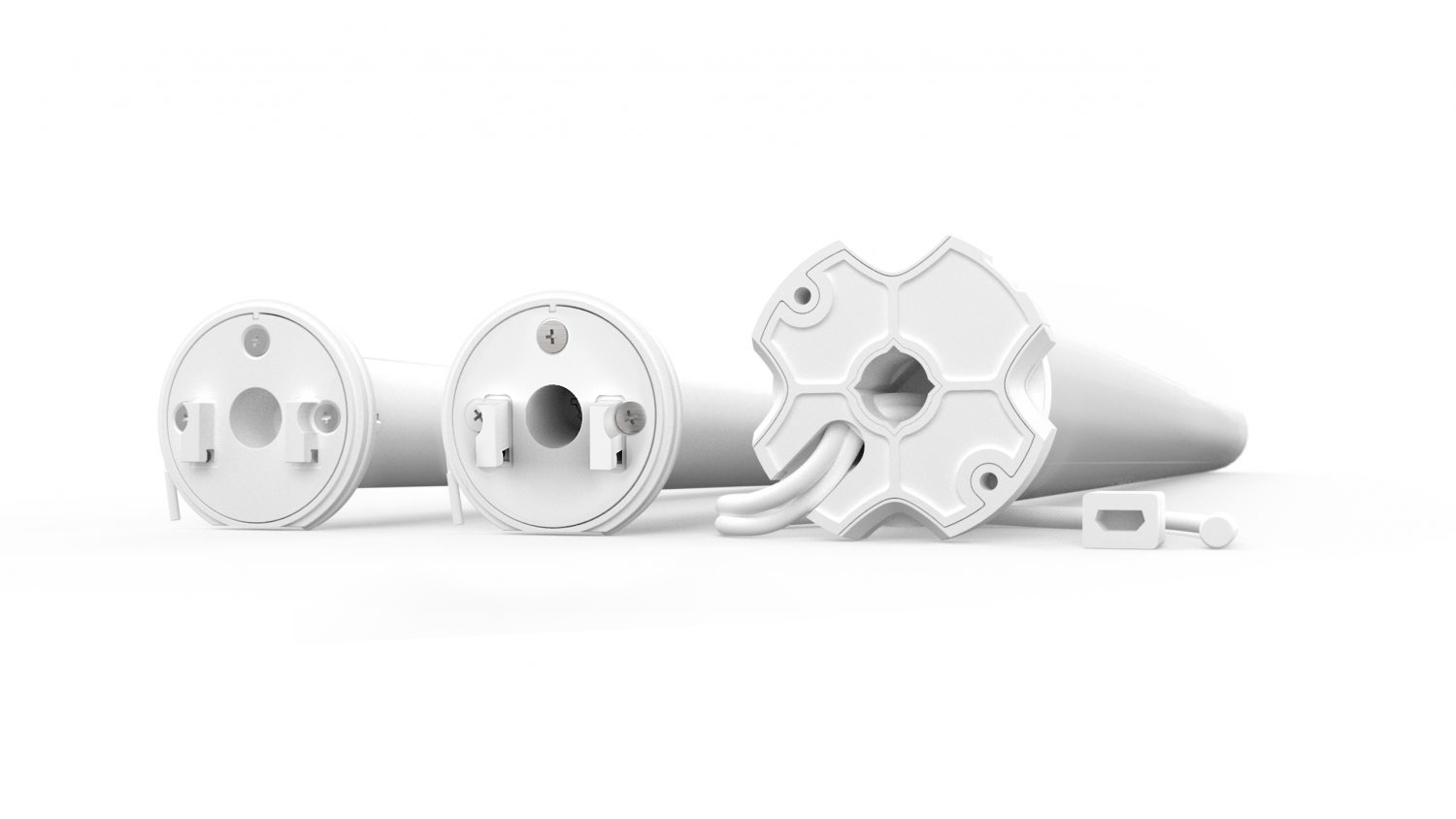

Automate 5V Li-ion Series
Extra quiet, rechargeable, battery-powered. The next generation 5V Collection is perfect for shades of all sizes.
The collection boasts an innovative design focused on simplicity and engineered to last. Featuring a patent-pending Zero motor head that delivers a truly wire-free experience and the smallest light gap. Recharge with a universal 5 Volt micro-USB connection, or continuously charge with the Solar Panel V2.
Intuitive technology introduces soft-stop functionality to ensure a smooth operation as the shade ascends and descends to protect the shade from damage, and operators can easily determine the motor’s battery level using any of the Automate controller’s one-touch battery-check function.
Compatible with most roller and roman hardware systems, the range also features retrofit capabilities to upgrade existing manual or motorized shade systems maintaining existing deductions and eliminating the need for bracket adjustments. The range supports small to large shade applications with lifting capabilities up to 88 pounds.
Features
Unique Motor Head Design
A Slim Motor Head For A Minimal Light-Gap And A Purpose-Designed Groove For The Antenna Cable.
Innovative Motor Cap
This optional, decorative cover ensures that all wires are completely out of sight.

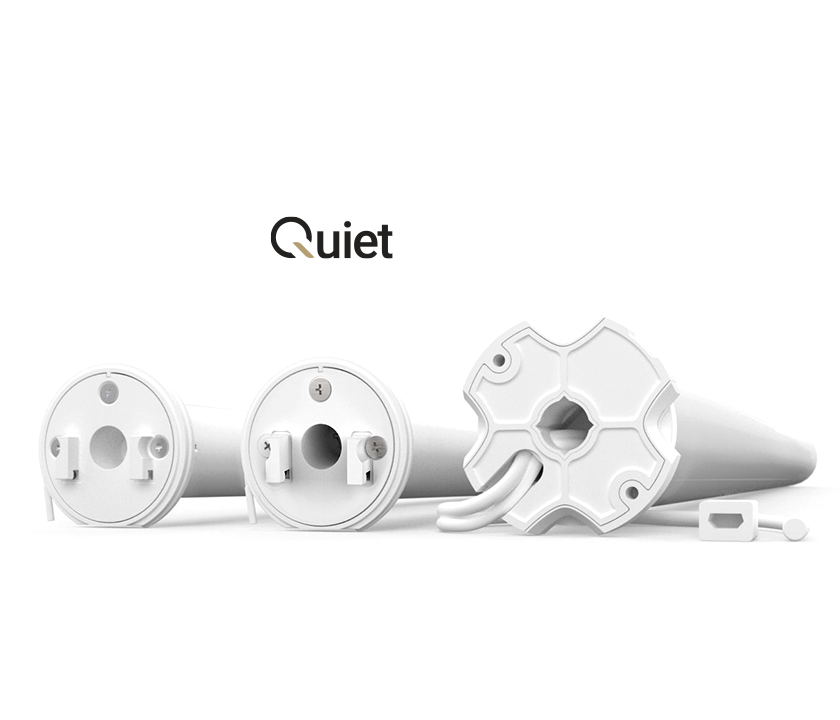

Ultra-Quiet
Acoustically engineered to insulate sound, this is our quietest Automate motor yet.
Elegant Soft Stop
The smooth action slows the motor down upon shade closure, quietly coming to an elegant stop.
Battery Check Action
Easily check battery level with one touch of the remote, moving the shade to indicate battery percentage.
Micro USB Charging
Quickly and conveniently charge the motor with any micro-USB cable charger.
Secure Hold
Motor head design accommodates 12mm tongue brackets for a strong, secure hold.
Simplified Retrofit
The slim motor head retains manual system deductions, eliminating the need for bracket adjustment.
Technical Specifications
Show Specifications Hide Specifications
| Zero Li-ion EQ 0.5 | Zero Li-ion EQ 1.1 | Zero Li-ion EQ 2.0 | Li-ion EQ 3.0 | Li-ion 3.0 | Li-ion EQ 10.0 | |
| Battery Size/Type | 2600 mAH | 2600mAH | 2600mAH | 4400 mAH | 5100mAH | 4400mAH |
| Current | 0.85A | 0.83 A | 1.25A | 2.2 A | 2.2 A | 2.2A |
| Insulation Class | III | III | III | III | III | III |
| IP Rating | IP20 | IP20 | IP20 | IP44 | IP44 | IP44 |
| Limit Switch Type | Electronic | Electronic | Electronic | Electronic | Electronic | Electronic |
| Max Run Time | 12 min. | 12 min. | 12 min. | 12 min. | 12 min. | 12 min. |
| Power | 10 W | 15 W | ||||
| Radio Frequency | 433.92 MHz | 433.92 MHz | 433.92 MHz | 433.92 MHz | 433.92 MHz | 433.92 MHz |
| RF Modulation | FSK | FSK | FSK | FSK | FSK | FSK |
| Sound Level | ~38 dB | ~46 dB | ~46 dB | ~40 dB | ~53dB | ~42DB |
| Speed | 20 RPM (Adjustable to 24 or 28) | 20 RPM (Adjustable to 24 or 28) | 20 RPM (Adjustable to 24 or 28) | 28 RPM (Adjustable to 20 or 24) | 28 RPM (Adjustable to 24 or 20) | 9 RPM (Adjustable to 7 or 5) |
| Temp Working Range | 32°F to 140°F (0°C to 60°C) | 32°F to 140°F (0°C to 60°C) | 32°F to 140°F (0°C to 60°C) | 32°F to 140°F (0°C to 60°C) | 32°F to 140°F (0°C to 60°C) | 32°F to 140°F (0°C to 60°C) |
| Torque | 0.5 Nm | 1.1Nm | 2.0Nm | 3.0Nm | 3.0Nm | 10Nm |
| Voltage | 5V-DC | 5V-DC | 5V-DC | 5V-DC | 5V-DC | 5V-DC |
Controllers
Pulse 2 App
View DetailsParadigm Remote
View DetailsWall Switch
View DetailsPush Remote
View DetailsPulse 2 Hub
View DetailsAccessories
5V Solar Panel
View DetailsUSB Wall Charger 5V
View DetailsUSB Charger Cable
View Details5V Magnetic Charger
View DetailsCompliance Documentation
Specification Documentation
Battery Powered Motors

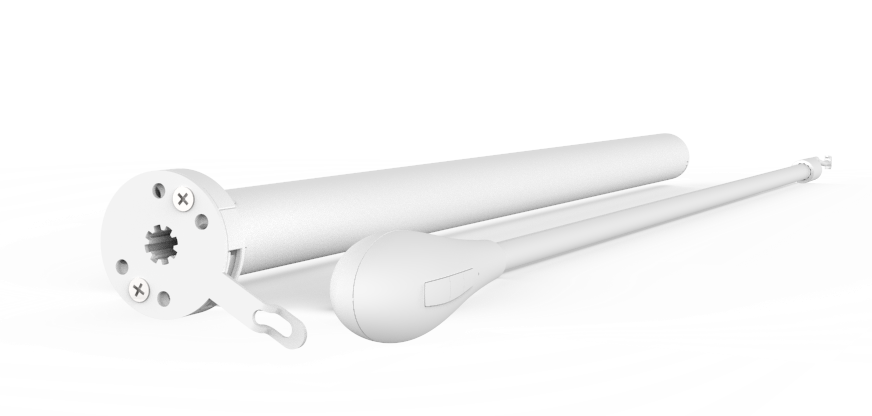

Automate Li-ion Series
This series of rechargeable, lithium-ion battery motors are completely wire-free, offering a clean look for your shades. When using the Li-ion Series, the smallest shades can measure 25″ x 12″ in size up to 168″ x 168″ when using the largest motor. The Automate™ Li-ion Series is directly compatible with roller shading systems but can also be adapted for roman shades. The 3.0Nm motor can be incorporated into Venetian blinds.
Features
Bidirectional Communication
Automate Radio Communication utilizes two-way communication to provide up-to-date feedback on battery levels and shade positioning via the Automate Pulse 2 app.
Adjustable Speed Control
Three shade speed settings to suit your needs faster for larger shades, slower for smaller. Features quiet operation when set to the lowest speed setting.
Simplified Setup
Whether using a remote control or app for shade setup, Automate programming instructions are streamlined to have your shades moving as quickly as possible.
Favorite Positioning
Add a programmable shade position in addition to the upper and lower limits that can be defined as your favorite.
Precise Limit Adjustment
Incremental steps during limit setting allows for precise positioning of the shade.
Technical Specifications
Show Specifications Hide Specifications
| Li-ion 1.1 | Li-ion Q2 | Li-ion 3 | Li-ion Q3 | Li-ion Q10 | |
| Amps | 0.83 A | 1.25 A | 1.67A | 1.67 A | 1.75 A |
| Battery Size/Type | 2200mAH | 2600 mAH | 4000mAH | 4400 mAH | 4400 mAH |
| Insulation Class | III | III | III | III | III |
| IP Rating | IP44 | IP44 | IP44 | IP44 | IP44 |
| Limit Switch Type | Electronic | Electronic | Electronic | Electronic | Electronic |
| Max Run Time | 10 min | 10 Min | 10 min | 10 Min | 10 Min |
| Radio Frequency | 433.92 MHz | 433.92 MHz | 433.92 MHz | 433.92 MHz | 433.92 MHz |
| RF Modulation | FSK | FSK | FSK | FSK | FSK |
| Sound Level | ~46DB | ~44 DB | ~53DB | ~40 DB | ~42 DB |
| Speed | 40 RPM (Adjustable to 30 or 20) | 28 RPM (Adjustable to 24 or 20) | 28 RPM (Adjustable to 24 or 20) | 28 RPM (Adjustable to 24 or 20) | 9 RPM (Adjustable to 8 or 6) |
| Temp Working Range | 32°F to 140°F (0°C to 60°C) | 32°F to 140°F (0°C to 60°C) | 32°F to 140°F (0°C to 60°C) | 32°F to 140°F (0°C to 60°C) | 32°F to 140°F (0°C to 60°C) |
| Torque | 1.1 Nm | 2.0 Nm | 3.0 Nm | 3.0 Nm | 10.0 Nm |
| Voltage | 12 V | 12 V | 12 V | 12 V | 12 V |
